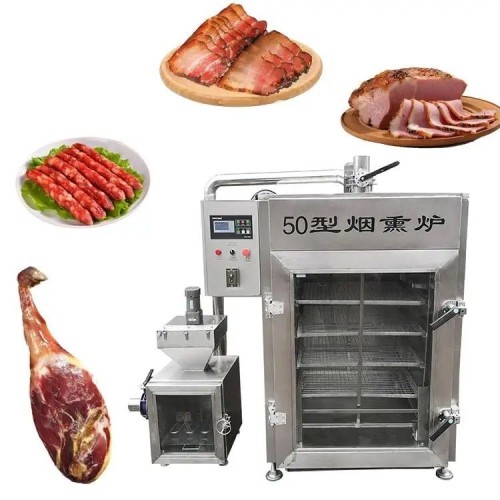

The smoker has the functions of cooking, drying, smoking, and coloring. It can be steamed, dried, smoked all kinds of dried bean curd, sausage, ham, dried sausage, sausage, barbecue and all kinds of chicken, duck, fish products, etc.
The operation is simple,convenient and reliable.
|
Product name
|
|
|
Item-No.
|
PD-30
|
PD-50
|
PD-100
|
PD-150
|
|
Capacity
|
30kgs/furnace
|
50kgs/furnace
|
100kgs/furnace
|
150kgs/furnace
|
|
Motor power
|
1.5kw
|
1.5kw
|
2.2kw
|
2.2kw
|
|
Heating tube power
|
|
8kw
|
12kw
|
18kw
|
|
Smoke generator power
|
3kw
|
3kw
|
3kw
|
3kw
|
|
Total power
|
10.5kw
|
12.5kw
|
17.2kw
|
23.2kw
|
|
Trolley size
|
660*715*900mm
|
680*730*1050mm
|
980*980*1100mm
|
1250*1050*1700mm
|
|
Work space
|
700*800*950mm
|
720*820*1150mm
|
1140*1030*1040mm
|
1300*1200*1850mm
|
|
Machine size
|
1540*1035*1690mm
|
1600*1050*1850mm
|
2300*1250*1900mm
|
2300*1300*2250mm
|
|
Item-No.
|
PD-200
|
PD-250
|
PD-500
|
PD-1000
|
|
Capacity
|
200kgs/furnace
|
250kgs/furnace
|
500kgs/furnace
|
1000kgs/furnace
|
|
Motor power
|
3kw
|
3kw
|
4kw
|
8kw
|
|
Heating tube power
|
18kw
|
24kw
|
48kw
|
72kw
|
|
Smoke generator power
|
3kw
|
3kw
|
4kw
|
8kw
|
|
Total power
|
24kw
|
30kw
|
56kw
|
88kw
|
|
Trolley size
|
1000*980*1700mm
|
1000*1030*1900mm
|
1000*1030*1900mm/2Sets
|
1000*1030*1900mm/4Sets
|
|
Work space
|
1050*1020*1750mm
|
1050*1050*1950mm
|
2000*1350*1950mm
|
4350*1350*1950mm
|
|
Machine size
|
2300*1300*2400mm
|
2300*1350*2600mm
|
2350*1900*2600mm
|
4700*1900*2600mm
|
